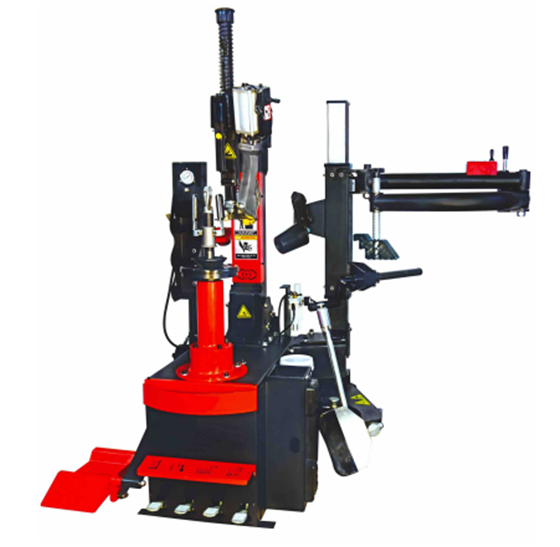

XY-TC822B
technical parameters
model: XY-TC822B
power supply: 110V/220V/380V
motor power: 1.1/0.75kw
working pressure: 8-10Bar
applicable rim: 12-24"
Maximum tire width: 14 inches
Max. Wheel diameter: 1000mm
net weight: 314kg
gross weight: 360kg
packing size: 1220x950x1170MM
Show Details
Note: Product pictures are for reference only. Produced in different voltages and colors.
1. No disc locking structure, matching alloy steel quick nut, quick locking without damage to the rim.
2. The combination of hand-controlled large shovel structure and general large shovel structure,
The shovel tire is easy to operate.
3. The newly flipped tire head eliminates the crowbar, is easy to operate, and is suitable for hard wall flat tires.
4. Advanced mechanical arm
5. Metal six-bar handle, the handle adopts multi-bar linkage structure
6. Special explosion-proof grade oil mist device
2. The combination of hand-controlled large shovel structure and general large shovel structure,
The shovel tire is easy to operate.
3. The newly flipped tire head eliminates the crowbar, is easy to operate, and is suitable for hard wall flat tires.
4. Advanced mechanical arm
5. Metal six-bar handle, the handle adopts multi-bar linkage structure
6. Special explosion-proof grade oil mist device
