XY-YXJ-P35A
Technical Parameter
Model:XY-YXJ-P35A
Lifting Capacity:3500KG
Max Lifting Height:1850MM
Min Lifting Height:330MM
Power Of Motor:2.2KW
Oil Pressure:18Mpa
Power Supply:220-240V/380-415V
Rise Time:50S
Drop Time:40S
Net Weight/Gross Weight:686/692KG
Packing Size:1600X600X840MM
560X380X1230MM

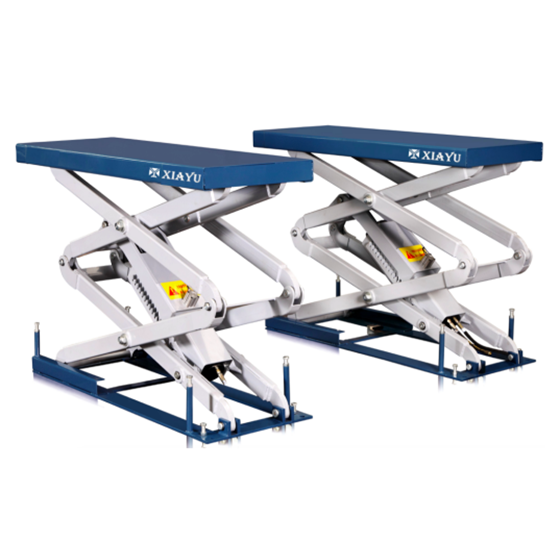

Display Details
Dimensions
Note: Products pictures are for references only. produce with different voltage and color.
In-ground installation.
Extensible platform design.
Pneumatic safety lock and release
24V low voltage control system .
Dual cylinder design, easy to debug.
Dynamic test:115% of the rated capacity, Static test:150% of the rated capacity
Extensible platform design.
Pneumatic safety lock and release
24V low voltage control system .
Dual cylinder design, easy to debug.
Dynamic test:115% of the rated capacity, Static test:150% of the rated capacity
