XY-YZ4-50U
technical parameters
model: XY-YZ4-50U
lifting capacity: 5000kg
lifting height: 1850mm
secondary lifting height: 450mm
secondary lifting weight: 3000kg
motor power: 3KW
oil pressure: 18Mpa
power supply: 220v-240v/380v-415v
rise time: 50S
discard time: 40S
net weight/gross weight: 1304kg/1325kg
packing size: 5100X600X730MM
950 X240X360MM mm
950x 29 0x 350mm
Show Details
dimension

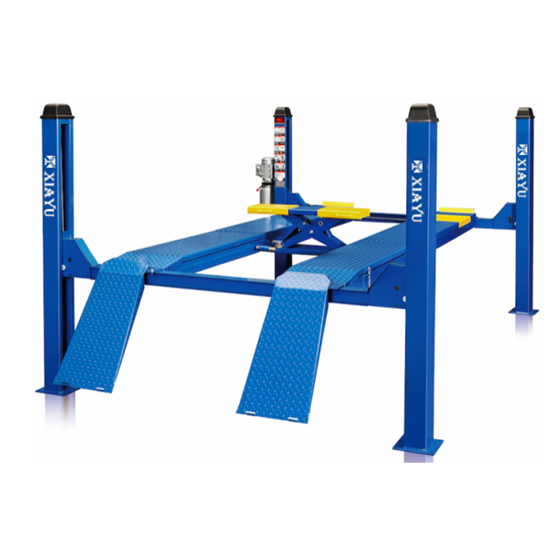

Note: Product pictures are for reference only. Produced in different voltages and colors.
Used for car repair and wheel alignment;
Single point manual lock release;
Heavy duty, stainless steel cable, high strength chain drive system;
Adjustable runway distance for vehicles with various wheelbase;
The anti-surge valve protects the hydraulic hose from bursting;
Match with finite switch;
ETL @ CE certified power unit
Single point manual lock release;
Heavy duty, stainless steel cable, high strength chain drive system;
Adjustable runway distance for vehicles with various wheelbase;
The anti-surge valve protects the hydraulic hose from bursting;
Match with finite switch;
ETL @ CE certified power unit
