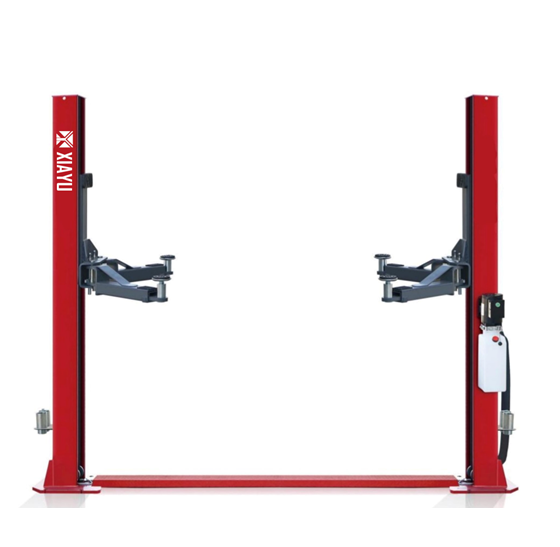

XY-YP2-40
technical parameters
model: XY-YP2-40
lifting capacity: 4000KG
lifting height: 1900MM
minimum height: 110MM
Lifting time: 50-60S
Total.:3380MM
Pass belt: 2500MM
Moto power: 2.2KW-380V/220V
Rated oil pressure: 24Mpa
weight: 595KG
inner column belt: 2800MM
Show Details
 |
 |
 |
 |
 |
| integral sliding table | butterfly stiffener | Chain Shield | Top limit switch | bowl pattern and single screw pad height apapter |
 |
 |
 |
 |
 |
| wire rope wheel | 3 2 arms, with toe protection guardrail (optional) | wear-resistant tubing cover (optional) | moisture shield (optional) | dust-proof and rust-proof cover groove (optional) |
Dimensions
Note: Product pictures are for reference only. Produces different voltages and colors.
1. 5mm laser cut column, 480*390*16mm base.
2. Bilateral release.
3. Optional 24v safety control box.
4. Safety lock below 500mm height.
5. Shot blasting automatic electrostatic powder spraying, lasting finish.
6. CNC, laser, plasma and robot welding for precision and smooth surface.
7. Germany Bosch Rexroth valve, Italy oil seal and ball valve.
2. Bilateral release.
3. Optional 24v safety control box.
4. Safety lock below 500mm height.
5. Shot blasting automatic electrostatic powder spraying, lasting finish.
6. CNC, laser, plasma and robot welding for precision and smooth surface.
7. Germany Bosch Rexroth valve, Italy oil seal and ball valve.
