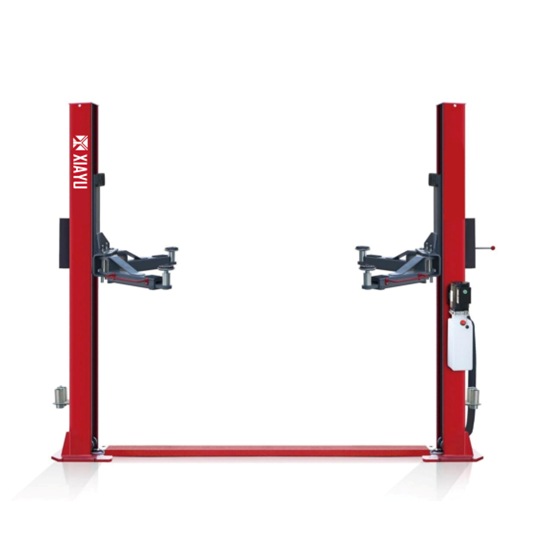

XY-YP2-40S

technical parameters

model: XY-YP2-40S

lifting capacity: 4000KG

lifting height: 1900MM

minimum height: 110MM

Lifting time: 50-60S

total distribution: 3380MM

through: 2500MM

Moto power: 2.2KW-380V/220V

Rated oil pressure: 24Mpa

weight: 610KG

inner column belt: 2800MM

Show Details

integral sliding table	butterfly stiffener	Chain Shield	Top limit switch	bowl pattern and single screw pad height apapter

Side Manual Release	3 2 arms, with toe protection guardrail (optional)	wear-resistant tubing cover (optional)	moisture cover (optional)	dust-proof and rust-proof cover groove (optional)

Dimensions

Note: Product pictures are for reference only. Produces different voltages and colors.
