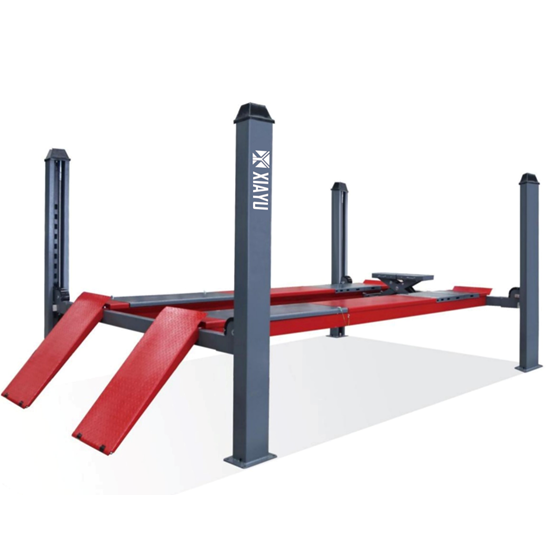

XY-YZ4-50

technical parameters

model: XY-YZ4-50

lifting capacity: 5000KG

lifting height: (main) 1800 (jack) 350MM

minimum height: 200MM

Lifting time: 50-60S

platform length: 5000MM

platform with: 550MM

Moto power: 3.0 kw-380v/220V

Rated oil pressure: 24Mpa

air pressure: 0.6-0.8Mpa

weight: 1400KG

Show Details

Manual Release	Pneumatic Release	electric release	square column	adjustable base with manual lock

wire rope anti-fracture system	upper limit switch	Slot box with waist hole	oil filling hole, plastic cover	pneumatic pedal pump (optional)

Dimensions

Note: Product pictures are for reference only. Produces different voltages and colors.
