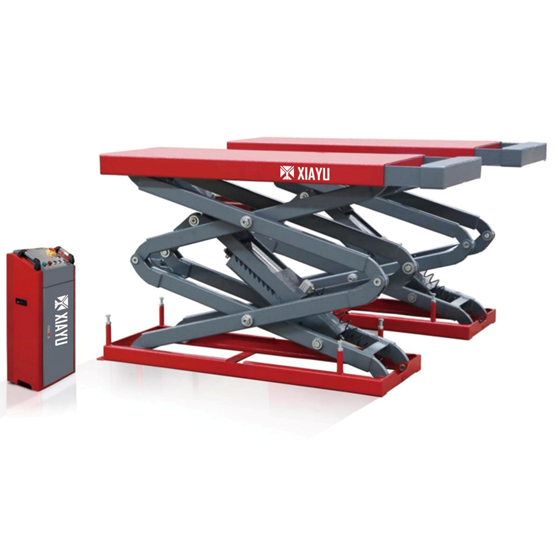

XY-YXJ-P35

technical parameters

model: XY-YXJ-P35

lifting capacity: 3500KG

lifting height: 2100MM

minimum height: 340MM

Lifting time: 70-90s

platform length: 1540MM

platform with: 550MM

Moto power: 2.2KW-380V/220V

Rated oil pressure: 24Mpa

air pressure: 0.6-0.8Mpa

weight: 800KG

Show Details

One-key leveling	Oil filling hole	Secondary cylinder oil return system	Top limit switch

polymer abrasion resistant slider	Dual Sldes extension (optional)	double pull SUV frame (optional)	photoelectric switch (optional)

Dimensions

Note: Product pictures are for reference only. Produces different voltages and colors.
