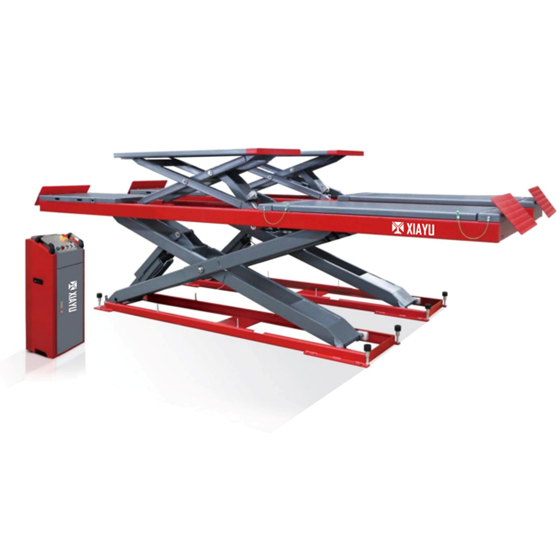

XY-YDJ-2P40

technical parameters

model: XY-YDJ-2P40

lifting capacity: 4000KG

lifting height: (main) 1900 (jack) 450M

minimum height: 340MM

Lifting time: 70-90s

platform length: 4200/4500MM

platform with: 600MM

Moto power: 3.0 kw-380v/220V

Rated oil pressure: 24Mpa

air pressure:0.6-0.8Mpa

weight: 1760/1900KG

Show Details

One-key leveling	Top limit switch	Secondary cylinder oil return system	Oil filling hole	Skateboard

Double lifting to prevent rollover	4.5 m auxiliary jack with one side extension	explosion-proof valve (optional)	photoelectric switch (optional)

Dimensions

Note: Product pictures are for reference only. Produces different voltages and colors.
