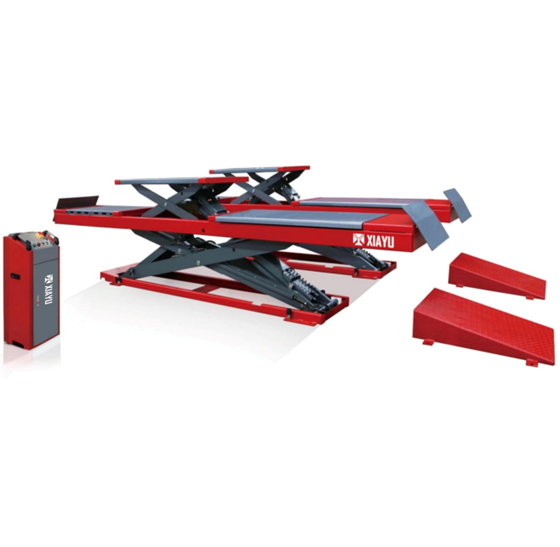

XY-YDJ-2P50C

technical parameters

model: XY-YDJ-2P50C

lifting capacity: 5000KG

lifting height: (main) 1850 (jack) 600M

minimum height: 280MM

Lifting time: 50-60S

platform length: 5200MM

platform with: 680MM

Moto power: 3.0 kw-380v/220V

Rated oil pressure: 24Mpa

air pressure:6-10Mpa

weight: 3500KG

Show Details

One-key leveling	Top limit switch	Secondary cylinder oil return system	Secondary Lift Aerodynamic Release	tool box with waist hole

Double-pull secondary lifting	fixed ramp	led light (optional)	photoelectric switch (optional)

Dimensions

Note: Product pictures are for reference only. Produces different voltages and colors.
