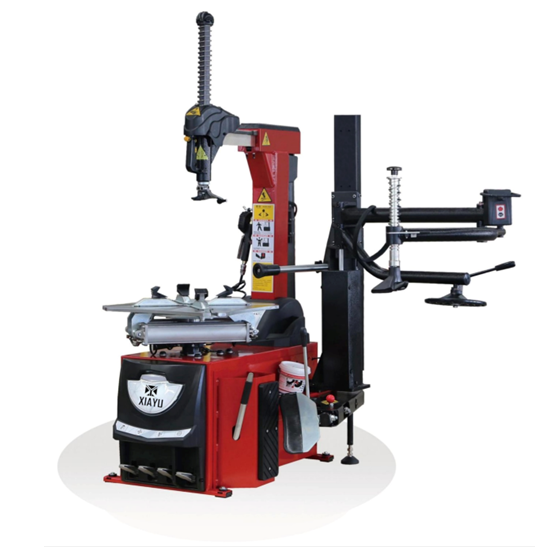

XY-TC-H860 320
technical parameters
Model: XY-TC-H 860+320
outer rim diameter: 11-22"
Inner support rim diameter: 12-24"
Tire width: 3-14"
Maximum wheel diameter: 1040MM
Working pressure: 4-8Bar
speed: 6.5rpm
Motor power: 0.75/1.1KW
Noise:<70dB
Weight: 383KG
Show Details
 |
 |
 |
 |
 |
| 24 “Tum Plate | Oil-water separator | Digital Inflation Meter | aluminum cylinder | aluminum 186 cylinder |

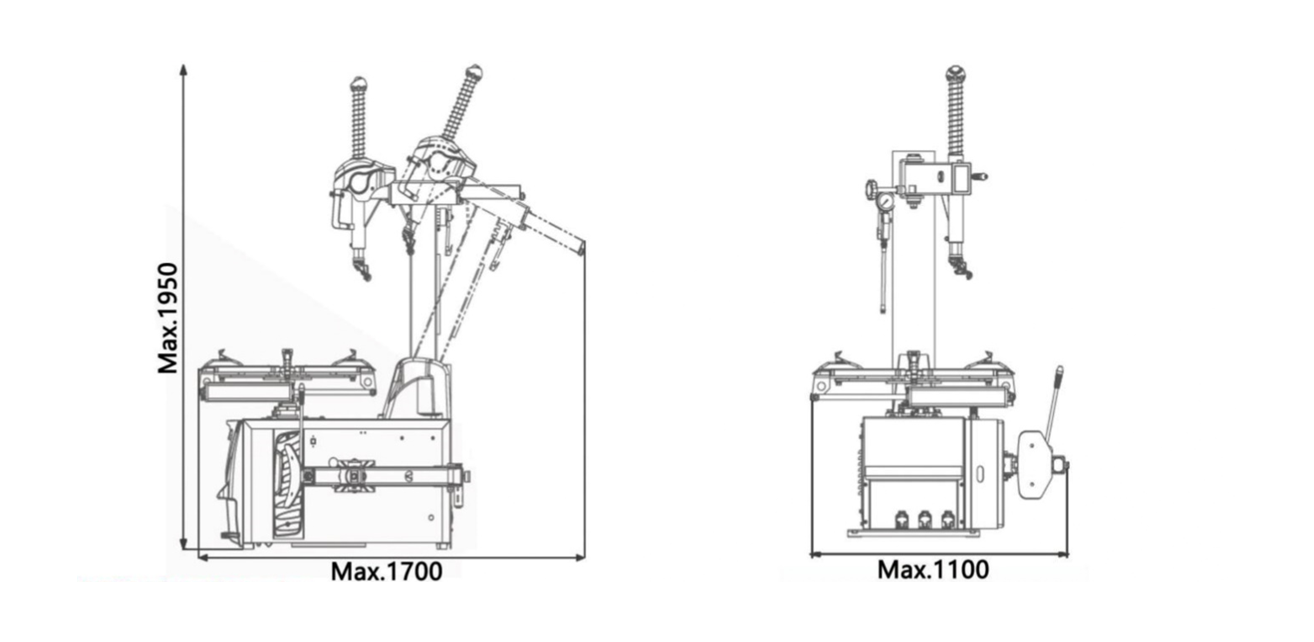

Dimensions (Unit: mm)
Note: Product pictures are for reference only. Produces different voltages and colors.
1. Auxiliary arm: 2-point tire press, simple and efficient
2. High quality motor: low noise, high power
3. Separate large cylinder: fast shovel, suitable for all tires
4. Reinforced arm base: durable and strong
5. Alloy head: anti scratch tire/wheel hub
6. Multi-directional shovel: 4-way adjustment, suitable for all tires
7. Adjustable foot support for double beam base
8. Double guide rail of extended hexagon socket: stable disassembly
2. High quality motor: low noise, high power
3. Separate large cylinder: fast shovel, suitable for all tires
4. Reinforced arm base: durable and strong
5. Alloy head: anti scratch tire/wheel hub
6. Multi-directional shovel: 4-way adjustment, suitable for all tires
7. Adjustable foot support for double beam base
8. Double guide rail of extended hexagon socket: stable disassembly
