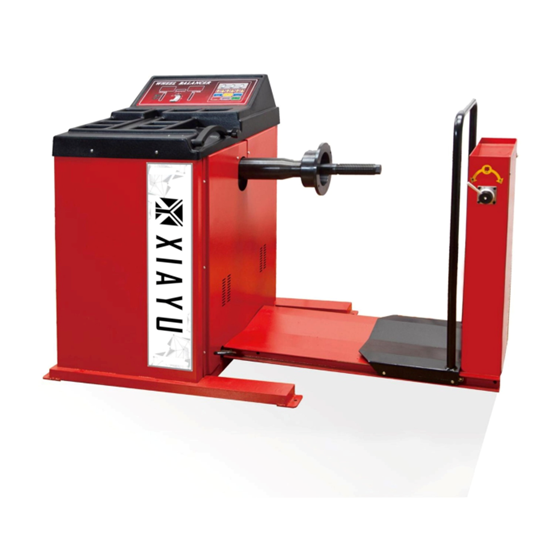

XY-WB-610Y
technical parameters
model: XY-WB-610Y
rim size: 12-24"
rim width: 3-20"
maximum wheel weight: 150KG
maximum wheel diameter: 1200MM
speed: 210R/Min
balance period: 10(7) s
Working air pressure:0.3-0.6Mpa
balance accuracy: ± 25g
motor power: 380V/0.75kw
Packing size:1250*1000*1220MM
weight: 300KG
Show Details
 |
 |
 |
 |
| Display | Cone | balance shaft | Nut |
Dimensions (Unit: mm)
Note: Product pictures are for reference only. Produces different voltages and colors.
1. Balance all tire types
2. Pneumatic lifting by model key: easy for large tires
3. Solid spindle: stable long-term measurement
4. Self-calibration and self-diagnosis function
Static Balance Mode
6. Optional cover: down = start, up = brake
2. Pneumatic lifting by model key: easy for large tires
3. Solid spindle: stable long-term measurement
4. Self-calibration and self-diagnosis function
Static Balance Mode
6. Optional cover: down = start, up = brake
