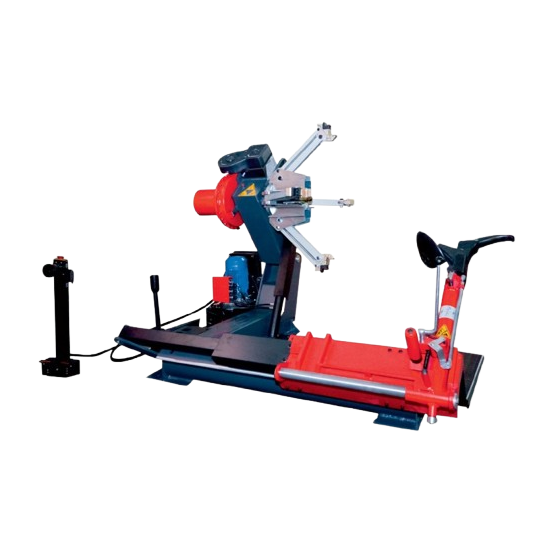

XY-TC1598

technical parameters

model: XY-TC1598

rim diameter: 14 "-42"
Maximum wheel weight: 1600kg
Maximum wheel width: 1050mm
Maximum tire diameter: 2300mm
Hydraulic pump motor: 2.2kw 380v-3ph-50HZ(220v optional)
Gearbox motor: 2.2kw 380v-3ph-50HZ(220v optional)
Broken bead force: 3300kg

maximum torque: 5265N.m
Operation control voltage: 24V
Machine weight: about 758kg
Dimension: 2500x2000mm
Power: 220/400V 50/60HZ 1p/3p optional

noise level:≤ 70db

temperature:0 ℃ ~ 40 ℃

Production Details

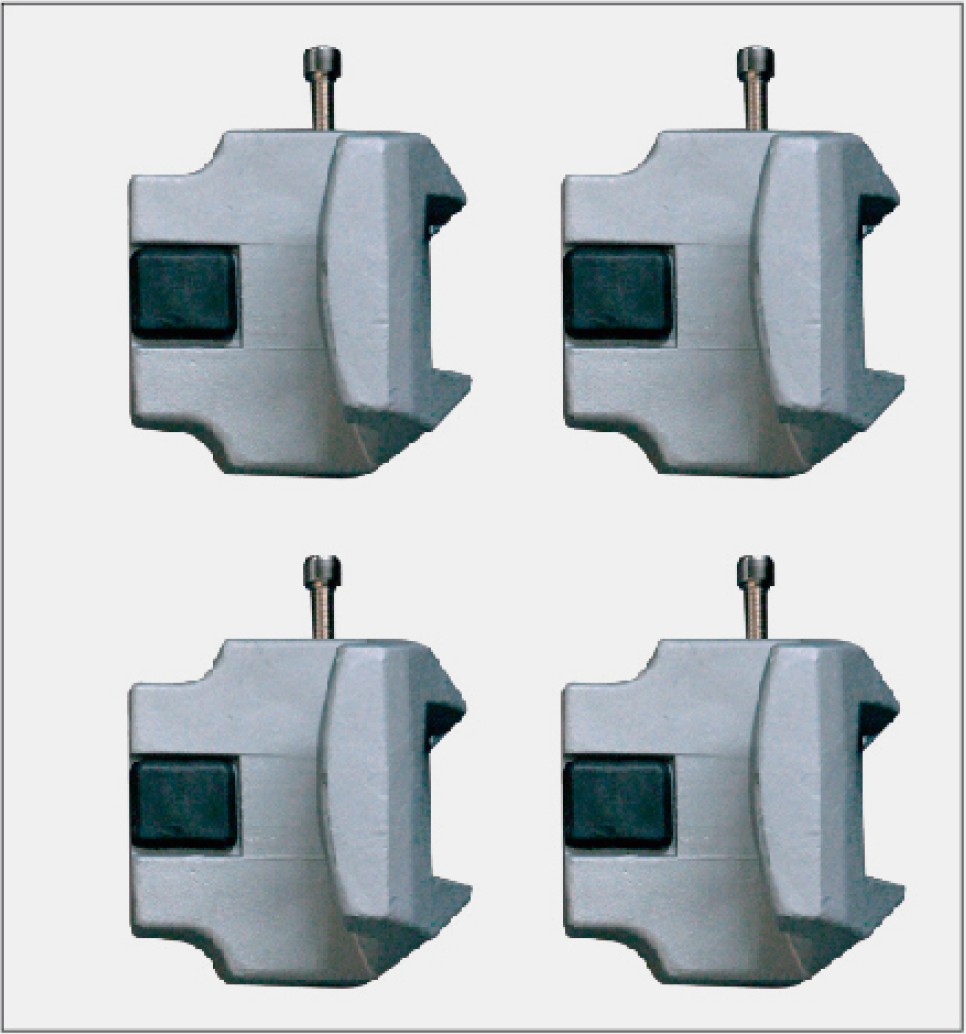

	Alu alloy rim protection set	tubeless roller

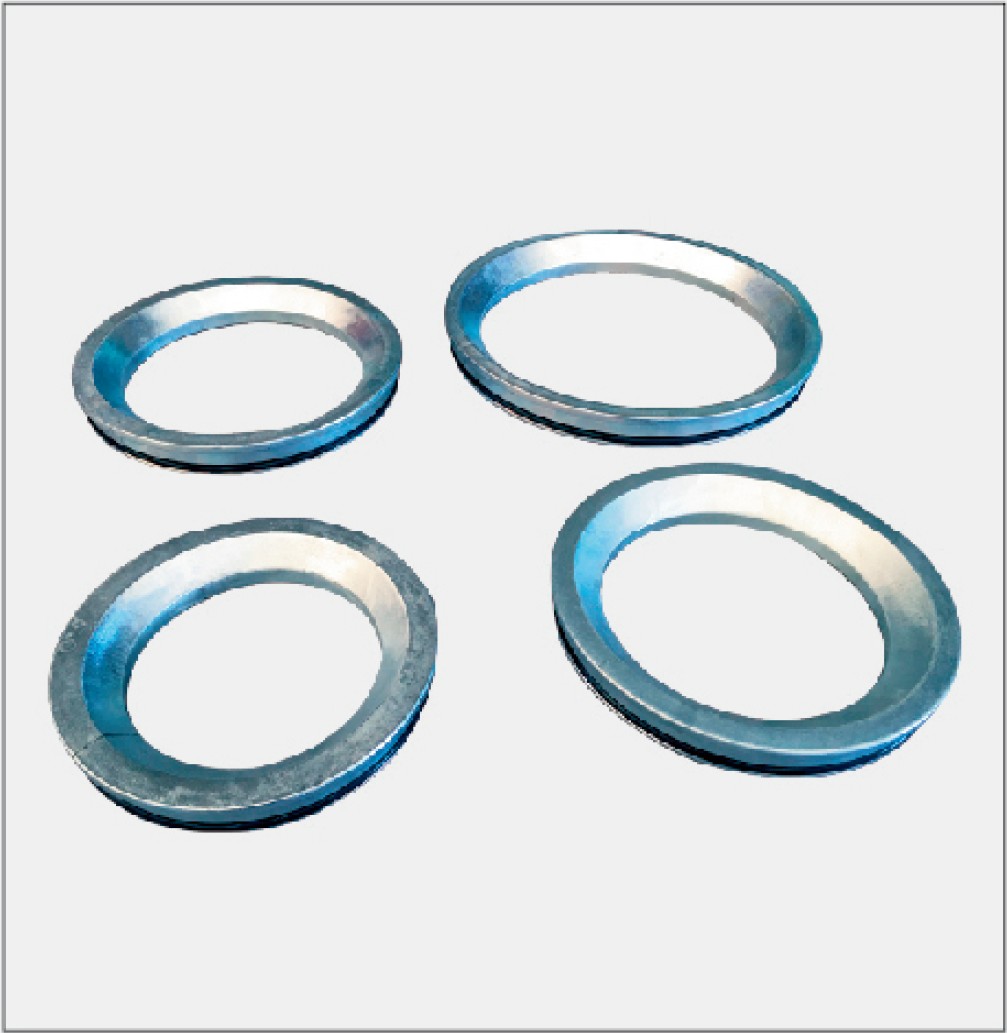

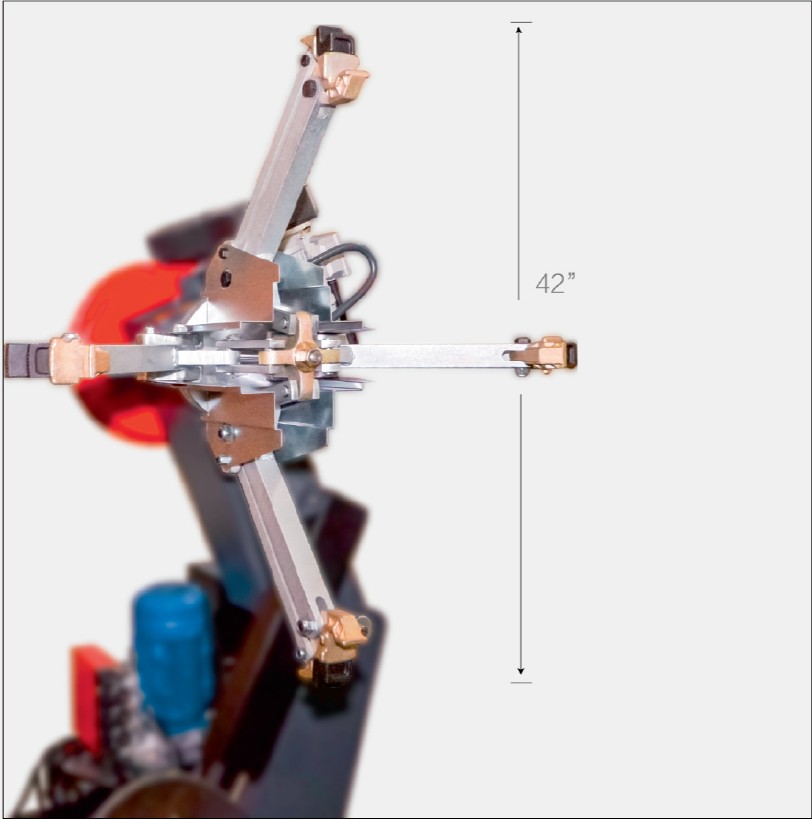

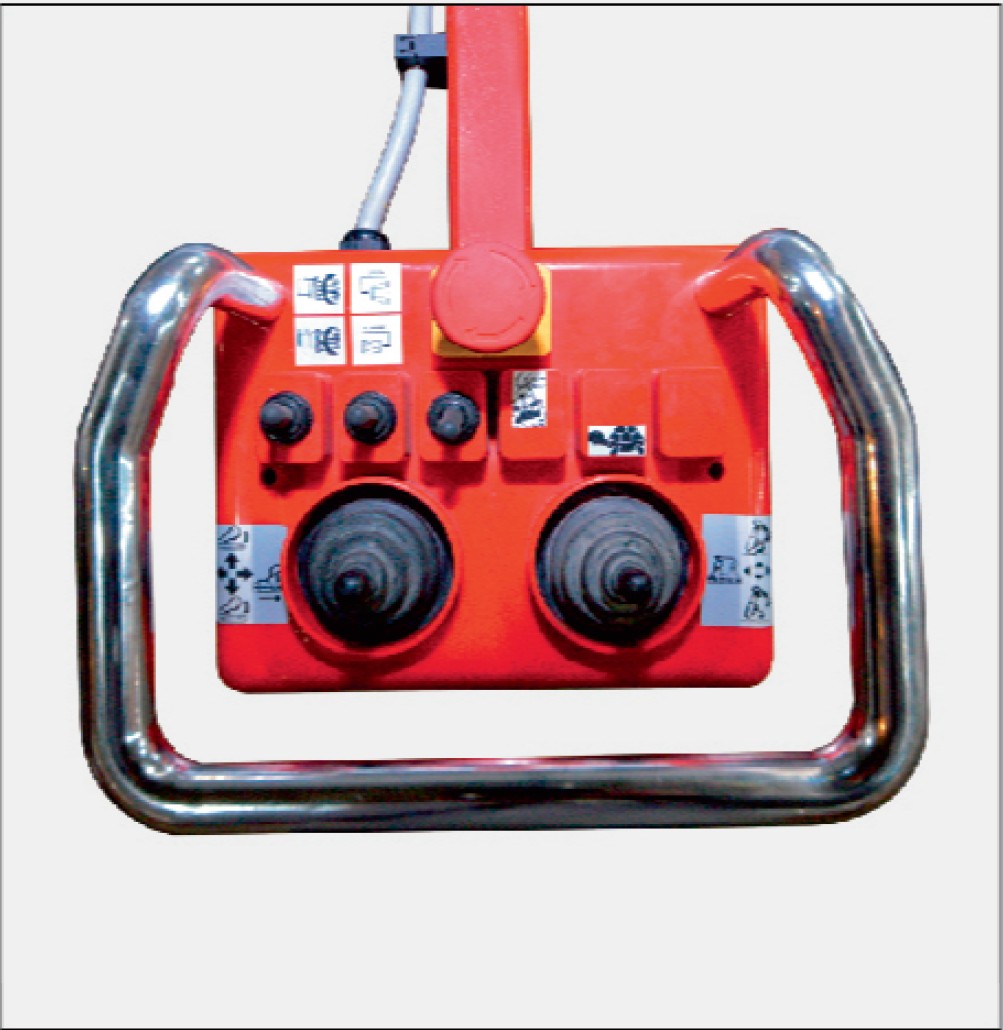

Universal self-centering chuck Operating sizes from 14 "to 42"	Alu alloy rim protection ring	Wireless remote control device

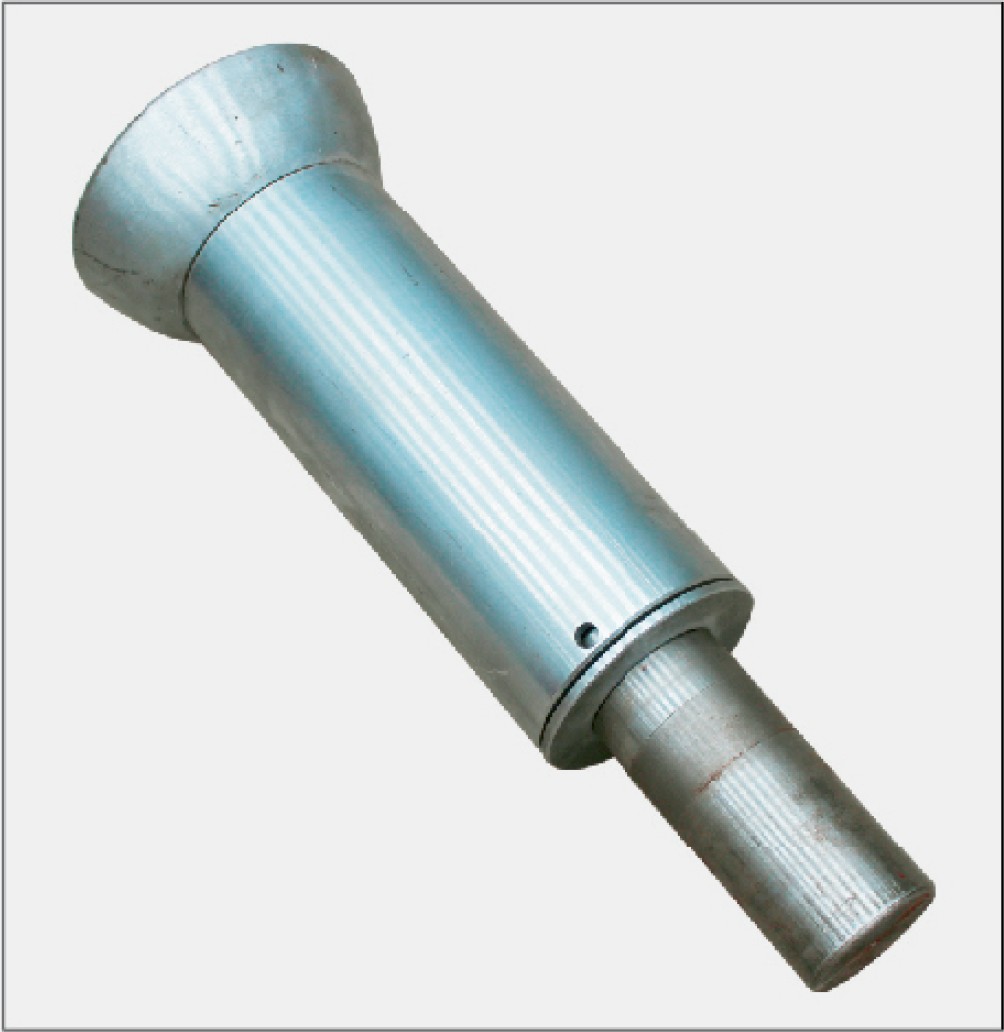

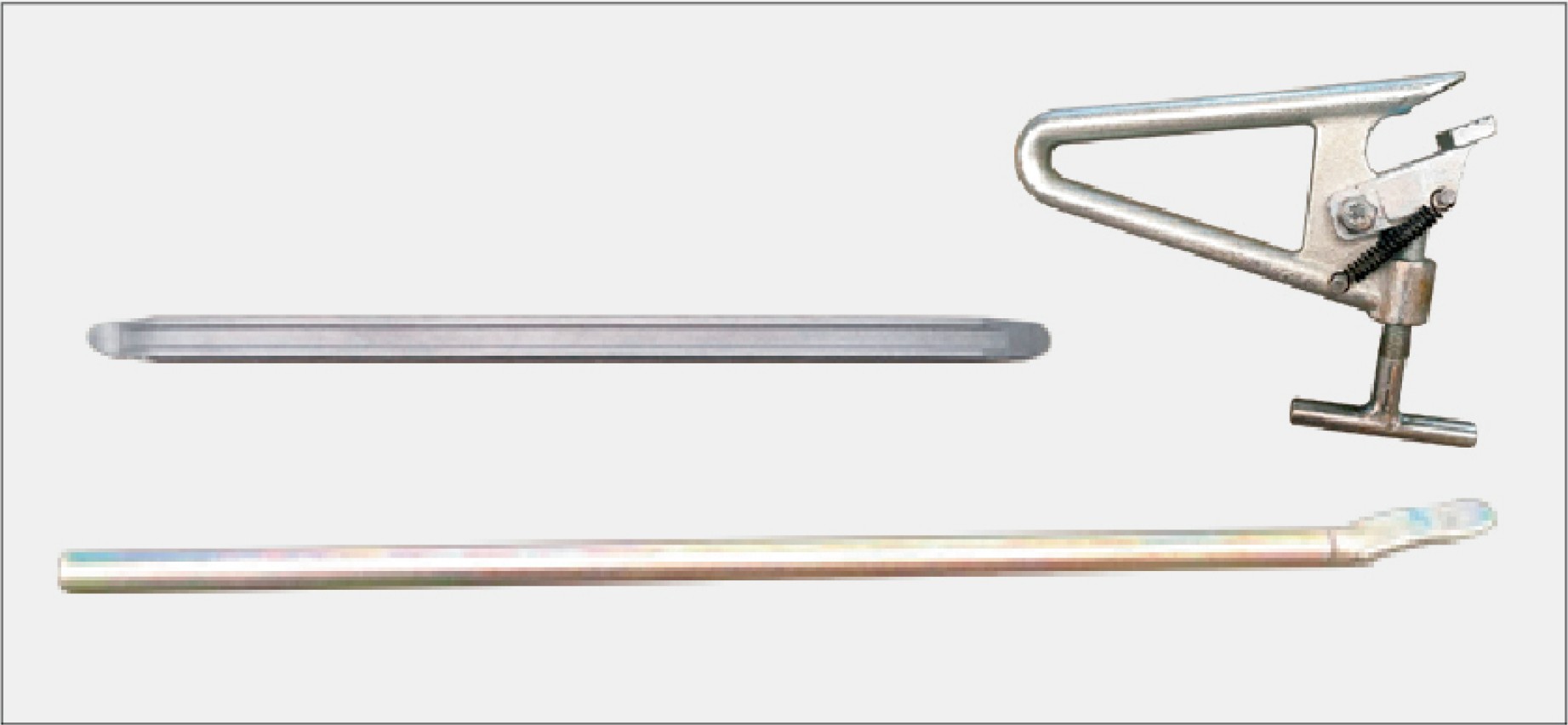

standard fittings

Weight and Dimensions

Note: Product pictures are for reference only. Produces different voltages and colors.
