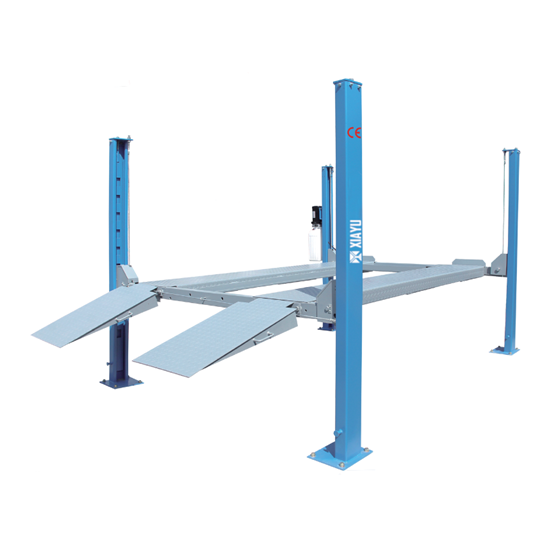

XY-PL-7000S
technical parameters
model: XY-PL-7000S
lifting capacity: 4000KG
lifting height: 1900MM
rise time: 50s
Fall time: 40s
motor power: 2.2KW
power supply: 110-240V/380-415V
1/3PH,50Hz/60Hz
Rated oil pressure: 18Mpa
standard
 |
 |
 |
 |
| Jack tray | Removable Kit | steel ramp | Steel Wheel Stopper |
optional
 |
 |
| safety limit switch | Altitude Limit Switch |
 |
 |
 |
 |
| control box | drip tray | Manual rolling jack | pneumatic rolling jack |
Dimensions
Note: Product pictures are for reference only. Produces different voltages and colors.
high quality power coating finish;
Heavy-duty, stainless steel lifting cable; single-point manual release, the operation is quite convenient;
Steel approach ramp;
Optional anti-surge valve when hydraulic hose burst;
Cable anti-fracture device, double to ensure safety;
The slave runway is adjustable to adapt to various wheelbase vehicles;
A single hydraulic cylinder is hidden under the runway to obtain minimum exposure and maximum reliable performance;
ETL and CE certified powerplants.
Heavy-duty, stainless steel lifting cable; single-point manual release, the operation is quite convenient;
Steel approach ramp;
Optional anti-surge valve when hydraulic hose burst;
Cable anti-fracture device, double to ensure safety;
The slave runway is adjustable to adapt to various wheelbase vehicles;
A single hydraulic cylinder is hidden under the runway to obtain minimum exposure and maximum reliable performance;
ETL and CE certified powerplants.
