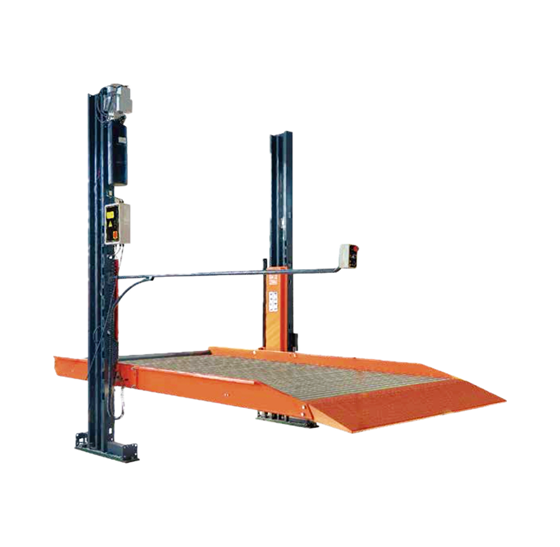

XY-PL-2700
technical parameters
model: XY-PL-2700
lifting capacity: 2700KG
platform: 2050MM
platform thickness: 115MM
Platforn length: 4165MM
Platforn width: 2000/2100/2200MM
rise time: 70s
motor power: 2.2KW
power supply: 110-240V/380-415V
weight: A:1060KG B:765KG
packing size: 3780*850*300/3800*520*310/1000*270*290/2200*760*200MM
Show Details
 |
 |
 |
 |
| 24v electrical cabinet | angle adjustment ramp | 24v operating handle | multi-stage cylinder |
 |
 |
| photoelectric sensor | balance chain |
Dimensions
Note: Product pictures are for reference only. Produces different voltages and colors.
1. Row Pooling Columns: Saving Space
2. Split platform: easy to transport/install
3. High-grade cylinder: safe/reliable
4. Double chain: guarantee platform level
5. Top/bottom limit photoelectric switch: safety
6.24v cabinet key control: person/car safety
7. Electromagnetic mechanical lock: do not need air
8. Low slope: suitable for low chassis vehicles
2. Split platform: easy to transport/install
3. High-grade cylinder: safe/reliable
4. Double chain: guarantee platform level
5. Top/bottom limit photoelectric switch: safety
6.24v cabinet key control: person/car safety
7. Electromagnetic mechanical lock: do not need air
8. Low slope: suitable for low chassis vehicles
