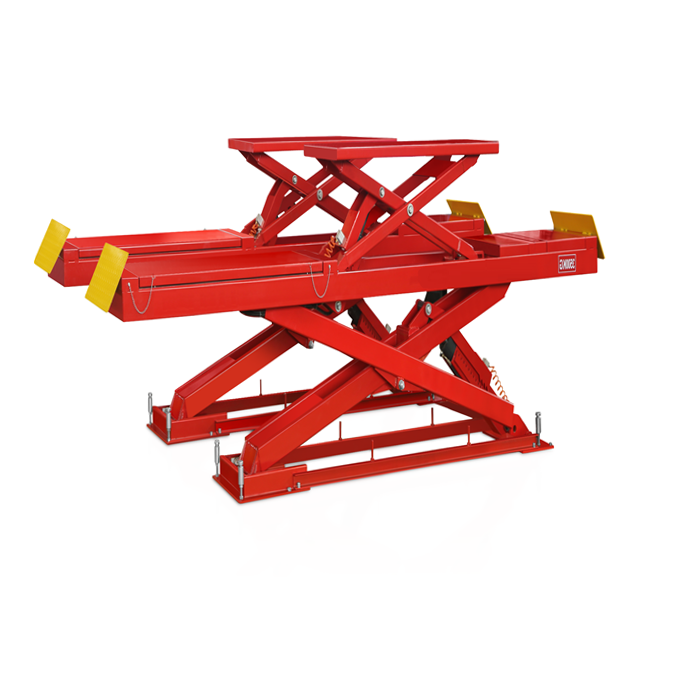

XY-YDJ-2P40
Technical Parameter
Model:XY-YDJ-2P40
Lifting Capacity:4000KG
Max Lifting Height:1700MM
Min Lifting Height:340MM
Secondary Lifting Height:450MM
Power Of Motor:3.0KW
Oil Pressure:24Mpa
Power Supply:380/220V
Rise Time:50-60S
Weight:1760/1900KG
Display Details
Dimensions
Note: Products pictures are for references only. produce with different voltage and color.
Used for car maintenance and wheel alignment;
Installation underground;
Pneumatic safety lock and release;
Imported electromagnetic valve and seal components;
ETL&CE certified power unit;
With manual pre-interface, lift can down by manual when power off accidentally;
Machine 3.5T, 4T available;
Installation underground;
Pneumatic safety lock and release;
Imported electromagnetic valve and seal components;
ETL&CE certified power unit;
With manual pre-interface, lift can down by manual when power off accidentally;
Machine 3.5T, 4T available;
