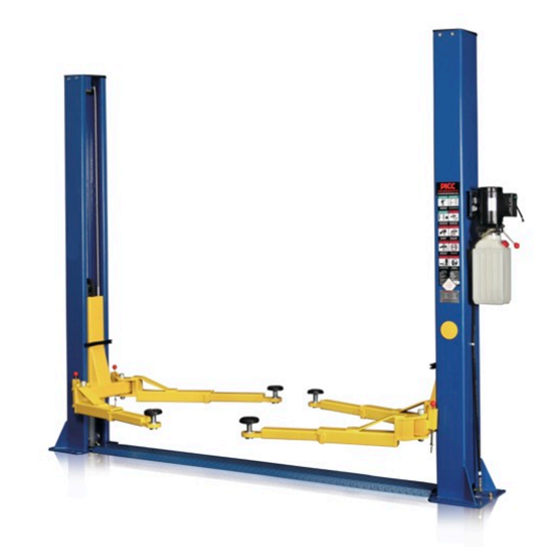

XY-YP2-40A
technical parameters
model: XY-YP2-40A
lifting capacity: 4000kg
maximum lifting height: 1900mm
minimum lifting height: 100mm
power: 2.2kw
oil pressure: 18Mpa
power supply: 220-240v/380-415v
rise time: 50S
discard time: 40S
net weight/gross weight: 553kg/564kg
packing size: 2900X560X770MM
900 X300X360MM mm
Show Details
dimension
Note: Product pictures are for reference only. Produced in different voltages and colors.
floor design, suitable for low roof car repair shop;
Manual locks on both sides are released;
Two cylinders with high-quality cylinder seals;
Heavy duty, stainless steel cable, high strength chain drive system;
ETL @ CE certified power unit;
24v CE simple control box, column cover, anti-protection strip, limit switch optional;
Manual locks on both sides are released;
Two cylinders with high-quality cylinder seals;
Heavy duty, stainless steel cable, high strength chain drive system;
ETL @ CE certified power unit;
24v CE simple control box, column cover, anti-protection strip, limit switch optional;
