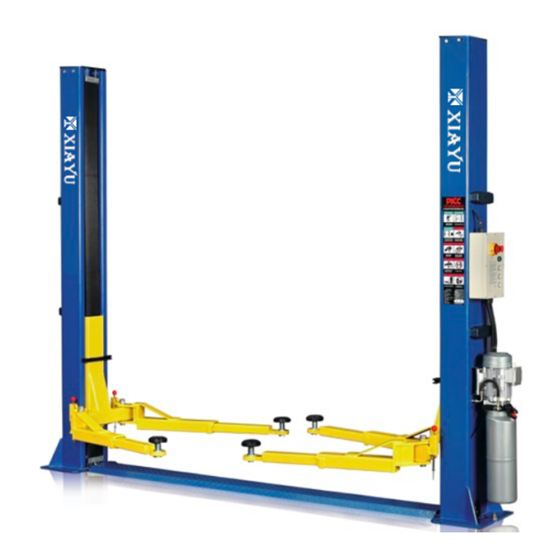

XY-YP2-40AE
technical parameters
model: XY-YP2-40AE
lifting capacity: 4000kg
maximum lifting height: 1900mm
minimum lifting height: 100mm
power: 2.2kw
oil pressure: 18Mpa
power supply: 220-240V/380-415V 1/3PH,50Hz/60Hz
rise time: 50S
discard time: 40S
net weight/gross weight: 580kg/590kg
packing size: 2900X560X770MM
825X245X310MM
475 x290x350 mm
Show Details
dimension
Note: Product pictures are for reference only. Produced in different voltages and colors.
floor design, suitable for low roof car repair shop;
Solenoid valve lock release, up and down automatic control;
Two cylinders with high-quality cylinder seals;
Heavy duty, stainless steel cable, high strength chain drive system;
gray and black column cover:
24v low voltage control box;
ETL @ CE certified power unit;
Anti-protection strip and limit switch are optional;
CE certification by the UK CCQS certification;
Solenoid valve lock release, up and down automatic control;
Two cylinders with high-quality cylinder seals;
Heavy duty, stainless steel cable, high strength chain drive system;
gray and black column cover:
24v low voltage control box;
ETL @ CE certified power unit;
Anti-protection strip and limit switch are optional;
CE certification by the UK CCQS certification;
