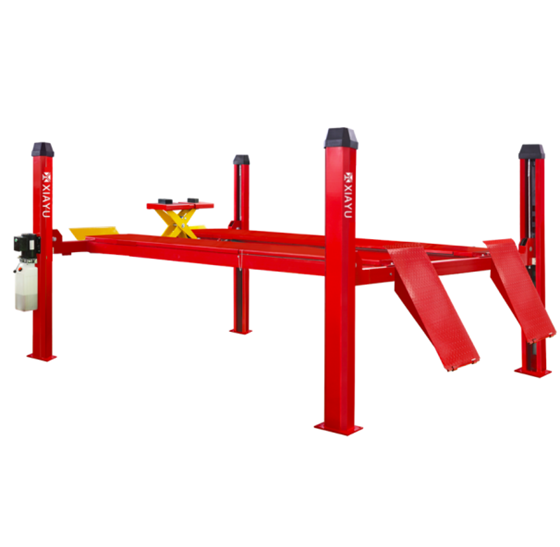

XY-YZ4-35
Technical Parameter
Model:XY-YZ4-35
Lifting Capacity:3500/4000/5000KG
Lifting Height:1500/1800MM
Secondary Lifting Height:350MM
Lifting Min Height:200MM
Lifing Time:50-60S
Platfomm Width:550MM
Platform Length:4200/4500/5000MM
Power Of Motor:2.2KW
Oil Pressure:24Mpa
Air Pressure:0.6-0.8Mpa
Power Supply:380V/220V
Weight:1200/1250/1350KG
Packing Size:5200X630X860
875X275X310MM
Display Details
Dimensions
Note: Products pictures are for references only. produce with different voltage and color.
Use for car repairing and wheel alignment;
With wire control security lock, with a wire rope fracture protection, operation safety.
Adopt electrical release, eight -point locking system, easy to operate.
Can be locked in the desired height of operation, safety and reliblity.
Runway spacing is adjustable for different wheel base vehicle.
With the second lift pulley
With wire control security lock, with a wire rope fracture protection, operation safety.
Adopt electrical release, eight -point locking system, easy to operate.
Can be locked in the desired height of operation, safety and reliblity.
Runway spacing is adjustable for different wheel base vehicle.
With the second lift pulley
